5 - Tuning models

Practical Machine Learning with tidymodels

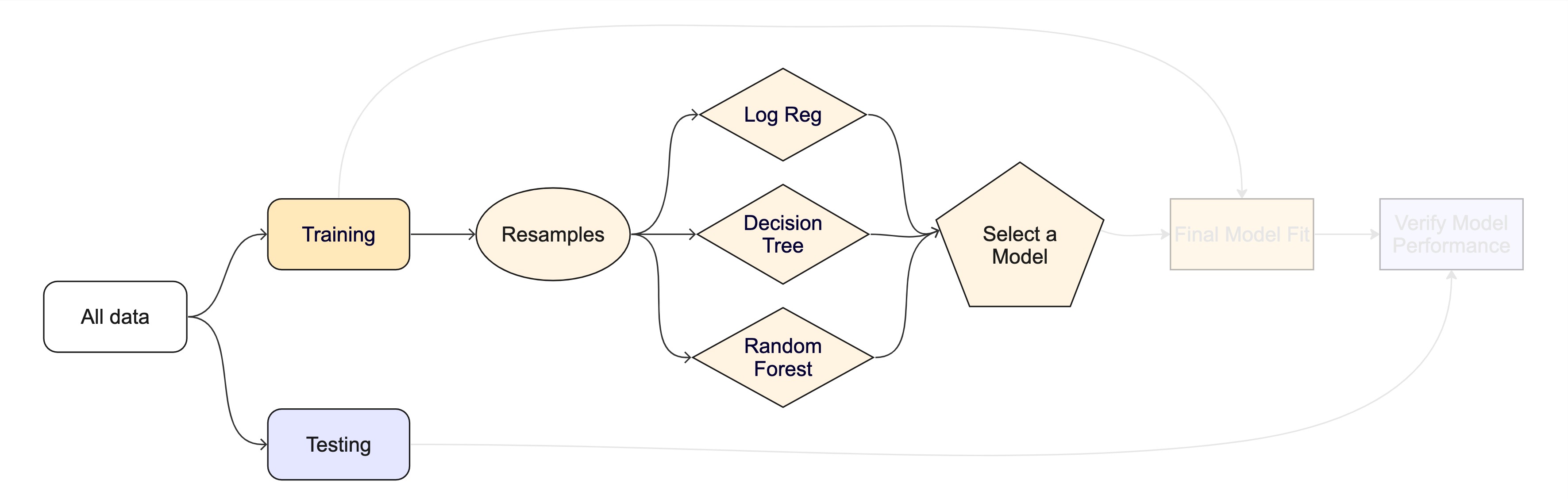

Previously….

Tuning parameters

Some model or preprocessing parameters cannot be estimated directly from the data.

Some examples:

  • Tree depth in decision trees
  • Number of neighbors in a K-nearest neighbor model

Optimize tuning parameters

  • Try different values and measure their performance.
  • Find good values for these parameters.
  • Once the value(s) of the parameter(s) are determined, a model can be finalized by fitting the model to the entire training set.

Optimize tuning parameters

The two main strategies for optimization are:

  • Grid search, which tests a pre-defined set of candidate values.

  • Iterative search, which suggests/estimates new values of candidate parameters to evaluate.

We won’t be discussing iterative search methods in the regular notes. But you can learn more in AML4TD or in the extra slides for this subject.


Let’s talk about a specific model (boosting) to demonstrate.

Boosted Trees

Boosted Trees

These are popular ensemble methods that build a sequence of tree models.


Each tree uses the results of the previous tree to better predict samples, especially those that have been poorly predicted.


Each tree in the ensemble is saved, and new samples are predicted using a weighted average of its votes.


We’ll focus on the popular xgboost implementation.

Boosted Tree Tuning Parameters

Some possible parameters:

  • trees: The number of trees (\([1, \infty]\), but usually up to thousands).
  • min_n: The number of samples needed to further split (\([1, n]\)).
  • learn_rate: The rate that each tree adapts from previous iterations (\((0, \infty]\), usual maximum is about 0.1).
  • stop_iter: The number of iterations of boosting where no improvement was shown before stopping (\([1, trees]\)).

We’ll focus on the learning rate for now.

Your turn

Open the help page for boost_tree() (via ?boost_tree).

Look at the engine documentation for xgboost models.

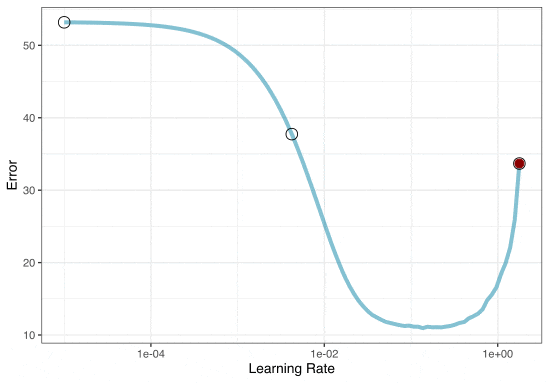

Grid search

In reality, we would probably sample the space more densely:

Specifying the model

# xgboost is the default engine
bst_spec <- boost_tree(trees = 500, learn_rate = tune(), mode = "classification")
bst_wflow <- workflow(class ~ ., bst_spec)

bst_wflow
#> ══ Workflow ══════════════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: boost_tree()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> class ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> Boosted Tree Model Specification (classification)
#>
#> Main Arguments:
#>   trees = 500
#>   learn_rate = tune()
#>
#> Computational engine: xgboost

Working with Parameters

tidymodels provides pre-defined information on tuning parameters (such as their type, range, transformations, etc.).

We can:

  • Extract the parameter information
  • Update their characteristics
  • Give their information to tune_grid(), etc.
mtry_param <-
  boost_tree(mtry = tune()) |>
  extract_parameter_set_dials()
mtry_param
#> Collection of 1 parameters for tuning
#>
#>  identifier type    object
#>        mtry mtry nparam[?]
#>
#> Model parameters needing finalization:
#> # Randomly Selected Predictors ('mtry')
#>
#> See `?dials::finalize()` or `?dials::update.parameters()` for more
#> information.

mtry_param |>
  update(mtry = mtry(c(1, 10)))
#> Collection of 1 parameters for tuning
#>
#>  identifier type    object
#>        mtry mtry nparam[+]
#>

Different types of grids

Space-filling designs (SFD) attempt to cover the parameter space without redundant candidates. We recommend these the most, and they are the default.

Try out multiple values

tune_grid() works similar to fit_resamples() but covers multiple parameter values:

set.seed(22)
bst_res <- tune_grid(
  bst_wflow,
  cls_folds,
  grid = 15
)

Compare results

Inspecting results and selecting the best-performing hyperparameter(s):

autoplot(bst_res)

Saving predictions

Let’s repeat this process but make sure that we keep the out-of-sample predictions

set.seed(22)
bst_res <- tune_grid(
  bst_wflow,
  cls_folds,
  grid = 15,
  control = control_grid(save_pred = TRUE)
)

Checking (Approximate) Calibration

bst_res |>
  cal_plot_windowed(
    # truth = class,
    # estimate = .pred_event,
    window_size = 0.2,
    step_size = 0.025,
  )

Compare results

Which is numerically best?

show_best(bst_res, metric = "brier_class")
#> # A tibble: 5 × 7
#>   learn_rate .metric     .estimator   mean     n std_err .config
#>        <dbl> <chr>       <chr>       <dbl> <int>   <dbl> <chr>
#> 1    0.00568 brier_class binary     0.0565    10 0.00409 pre0_mod05_post0
#> 2    0.00876 brier_class binary     0.0576    10 0.00450 pre0_mod06_post0
#> 3    0.0110  brier_class binary     0.0584    10 0.00454 pre0_mod07_post0
#> 4    0.00367 brier_class binary     0.0592    10 0.00401 pre0_mod04_post0
#> 5    0.0131  brier_class binary     0.0595    10 0.00474 pre0_mod08_post0

best_parameter <- select_best(bst_res, metric = "brier_class")
best_parameter
#> # A tibble: 1 × 2
#>   learn_rate .config
#>        <dbl> <chr>
#> 1    0.00568 pre0_mod05_post0

collect_metrics() is also available.

Running in parallel

  • Grid search, combined with resampling, requires fitting a lot of models!

  • These models don’t depend on one another and can be run in parallel.

We can use the future or mirai packages to do this:

cores <- parallelly::availableCores(logical = FALSE)


library(future)
plan(multisession, workers = cores)

# Now call `tune_grid()`!
library(mirai)
daemons(cores)

# Now call `tune_grid()`!

We’ll use mirai as our parallel backend for our notes.

Distributing tasks

When only tuning the model:

Running in parallel

Speed-ups are fairly linear up to the number of physical cores (10 here).

Your turn

Modify your model workflow to tune additional parameters.

Use grid search to find the best parameter(s).

The whole game - status update

The final fit

Suppose that we are happy with our boosted tree model.

Let’s fit the model on the training set and verify our performance using the test set.

We’ve shown you fit() and predict() (+ augment()) but there is a shortcut:

bst_final_wflow <- finalize_workflow(bst_wflow, best_parameter)
# cls_split has train + test info
set.seed(690)
final_res <- last_fit(bst_final_wflow, cls_split)

final_res
#> # Resampling results
#> # Manual resampling
#> # A tibble: 1 × 6
#>   splits            id               .metrics .notes   .predictions .workflow
#>   <list>            <chr>            <list>   <list>   <list>       <list>
#> 1 <split [800/200]> train/test split <tibble> <tibble> <tibble>     <workflow>

What is in final_res?

collect_metrics(final_res)
#> # A tibble: 3 × 4
#>   .metric     .estimator .estimate .config
#>   <chr>       <chr>          <dbl> <chr>
#> 1 accuracy    binary        0.905  pre0_mod0_post0
#> 2 roc_auc     binary        0.957  pre0_mod0_post0
#> 3 brier_class binary        0.0697 pre0_mod0_post0

These are metrics computed with the test set

What is in final_res?

collect_predictions(final_res)
#> # A tibble: 200 × 7
#>    .pred_class .pred_class_1 .pred_class_2 id               class   .row .config
#>    <fct>               <dbl>         <dbl> <chr>            <fct>  <int> <chr>
#>  1 class_1            0.977         0.0233 train/test split class…     1 pre0_m…
#>  2 class_2            0.164         0.836  train/test split class…     3 pre0_m…
#>  3 class_1            0.977         0.0233 train/test split class…     7 pre0_m…
#>  4 class_1            0.977         0.0233 train/test split class…     9 pre0_m…
#>  5 class_2            0.0460        0.954  train/test split class…    12 pre0_m…
#>  6 class_1            0.924         0.0760 train/test split class…    22 pre0_m…
#>  7 class_2            0.0460        0.954  train/test split class…    25 pre0_m…
#>  8 class_1            0.530         0.470  train/test split class…    27 pre0_m…
#>  9 class_1            0.977         0.0233 train/test split class…    28 pre0_m…
#> 10 class_1            0.977         0.0233 train/test split class…    32 pre0_m…
#> # ℹ 190 more rows

What is in final_res?

final_res |>
  cal_plot_windowed(window_size = 0.2, step_size = 0.025) +
  geom_rug()

What is in final_res?

extract_workflow(final_res)
#> ══ Workflow [trained] ════════════════════════════════════════════════
#> Preprocessor: Formula
#> Model: boost_tree()
#>
#> ── Preprocessor ──────────────────────────────────────────────────────
#> class ~ .
#>
#> ── Model ─────────────────────────────────────────────────────────────
#> ##### xgb.Booster
#> call:
#>   xgboost::xgb.train(params = list(eta = 0.0056848552336798, max_depth = 6,
#>     gamma = 0, colsample_bytree = 1, colsample_bynode = 1, min_child_weight = 1,
#>     subsample = 1, nthread = 1, objective = "binary:logistic"),
#>     data = x$data, nrounds = 500, evals = x$watchlist, verbose = 0)
#> # of features: 2
#> # of rounds:  500
#> callbacks:
#>    evaluation_log
#> evaluation_log:
#>   iter training_logloss
#>  <num>            <num>
#>      1        0.6313728
#>      2        0.6268702
#>    ---              ---
#>    499        0.1109659
#>    500        0.1107976

Use this for prediction on new data, like for deploying

Class Boundary

The whole game
