2 - Your data budget

Introduction to Machine Learning in R with tidymodels

Data on forests in Georgia

• The U.S. Forest Service maintains ML models to predict whether a plot of land is “forested.”
• This classification is important for all sorts of research, legislation, and land management purposes.
• Plots are typically remeasured every 10 years and this dataset contains the most recent measurement per plot.
• Type ?forested_ga to learn more about this dataset, including references.

Data on forests in Georgia

• N = 10937 plots of land, one from each of 10937 6000-acre hexagons in Georgia.
• A nominal outcome, forested, with levels "Yes" and "No", measured “on-the-ground.”
• 18 remotely-sensed and easily-accessible predictors:
  • numeric variables based on weather and topography.
  • nominal variables based on classifications from other governmental orgs.

• Those nominal variables are classifications similar to “forested” but from other agencies. e.g. land_type is from the European Space Agency, and is a remotely-sensed 3-class distribution based on predictions for how the land is used. (The data also includes a county variable, which is not itself from a model.)

Checklist for predictors

• Is it ethical to use this variable? (Or even legal?)

• Will this variable be available at prediction time?

• Does this variable contribute to explainability?

• re: ethics – what issues might arise from releasing the true lat and lon? In reality, these lat and lon are slightly jittered to help ensure trust with landowners who allow surveyers to come take measurements.

Data on forests in Georgia

library(tidymodels)
library(forested)

forested_ga
#> # A tibble: 10,937 × 19
#>    forested  year elevation eastness roughness tree_no_tree dew_temp
#>    <fct>    <dbl>     <dbl>    <dbl>     <dbl> <fct>           <dbl>
#>  1 Yes       2007        14        0         0 No tree          13.9
#>  2 Yes       2007        66      -53        10 Tree             13.8
#>  3 Yes       2006        59      -82         6 No tree          13.5
#>  4 Yes       2007       116      -78        20 Tree             12.3
#>  5 Yes       2006       283       63        13 Tree             10.0
#>  6 Yes       2007       250       63        14 Tree             10.8
#>  7 Yes       2007        58       31         1 No tree          13.8
#>  8 Yes       2023       140       56        11 Tree             12.2
#>  9 Yes       2024       118       72        17 Tree             12.2
#> 10 Yes       2024       217      -46        13 Tree             12.4
#> # ℹ 10,927 more rows
#> # ℹ 12 more variables: precip_annual <dbl>, temp_annual_mean <dbl>,
#> #   temp_annual_min <dbl>, temp_annual_max <dbl>, temp_january_min <dbl>,
#> #   vapor_min <dbl>, vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#> #   land_type <fct>, county <fct>

Data splitting and spending

For machine learning, we typically split data into training and test sets:

• The training set is used to estimate model parameters.
• The test set is used to find an independent assessment of model performance.

Do not 🚫 use the test set during training.

Data splitting and spending

The more data
we spend 🤑

the better estimates
we’ll get.

Data splitting and spending

• Spending too much data in training prevents us from computing a good assessment of predictive performance.

• Spending too much data in testing prevents us from computing a good estimate of model parameters.

Your turn

When is a good time to split your data?

03:00

The testing data is precious 💎

The initial split

set.seed(123)
forested_split <- initial_split(forested_ga)
forested_split
#> <Training/Testing/Total>
#> <8202/2735/10937>

How much data in training vs testing? This function uses a good default, but this depends on your specific goal/data

What is set.seed()?

To create that split of the data, R generates “pseudo-random” numbers: while they are made to behave like random numbers, their generation is deterministic given a “seed”.

This allows us to reproduce results by setting that seed.

Which seed you pick doesn’t matter, as long as you don’t try a bunch of seeds and pick the one that gives you the best performance.

Accessing the data

forested_train <- training(forested_split)
forested_test <- testing(forested_split)

The training set

forested_train
#> # A tibble: 8,202 × 19
#>    forested  year elevation eastness roughness tree_no_tree dew_temp
#>    <fct>    <dbl>     <dbl>    <dbl>     <dbl> <fct>           <dbl>
#>  1 Yes       1997        66       82        10 Tree            12.2
#>  2 No        1997       284      -99        58 Tree            10.3
#>  3 Yes       2022       130       86        15 Tree            11.8
#>  4 Yes       2021       202      -55         3 Tree            10.7
#>  5 Yes       1995        75      -89         1 Tree            13.8
#>  6 No        1995       110      -53         5 Tree            12.4
#>  7 Yes       2022       111       73        12 Tree            11.5
#>  8 Yes       1997       230       96        14 Tree             9.98
#>  9 Yes       2002       160      -88        13 Tree            11.1
#> 10 Yes       2020        39        9         6 Tree            13.9
#> # ℹ 8,192 more rows
#> # ℹ 12 more variables: precip_annual <dbl>, temp_annual_mean <dbl>,
#> #   temp_annual_min <dbl>, temp_annual_max <dbl>, temp_january_min <dbl>,
#> #   vapor_min <dbl>, vapor_max <dbl>, canopy_cover <dbl>, lon <dbl>, lat <dbl>,
#> #   land_type <fct>, county <fct>

The training set

forested_train |>
  select(where(is.factor))
#> # A tibble: 8,202 × 4
#>    forested tree_no_tree land_type           county
#>    <fct>    <fct>        <fct>               <fct>
#>  1 Yes      Tree         Tree                Muscogee
#>  2 No       Tree         Tree                Polk
#>  3 Yes      Tree         Tree                Hancock
#>  4 Yes      Tree         Tree                Oglethorpe
#>  5 Yes      Tree         Tree                Berrien
#>  6 No       Tree         Non-tree vegetation Dooly
#>  7 Yes      Tree         Tree                Columbia
#>  8 Yes      Tree         Tree                Walker
#>  9 Yes      Tree         Tree                Greene
#> 10 Yes      Tree         Tree                Wayne
#> # ℹ 8,192 more rows

• The tree_no_tree and land_type variables are both outputs from other machine learning models. Companies make their own classifications of forest vs. non-forest based on satellite images and then sell them. Those classifications are available at prediction time; the FIA will happily spend the few thousand dollars to buy the data for the whole country.

The test set

🙈

There are 2735 rows and 19 columns in the test set.

Your turn

Split your data so 20% is held out for the test set.

Try out different values in set.seed() to see how the results change.

We recommend using the .qmd files in the classwork/ folder for code exercises. They set you up with the code from the slides.

05:00

Data splitting and spending

set.seed(123)
forested_split <- initial_split(forested_ga, prop = 0.8)
forested_train <- training(forested_split)
forested_test <- testing(forested_split)

nrow(forested_train)
#> [1] 8749
nrow(forested_test)
#> [1] 2188

Exploratory data analysis for ML 🧐

Your turn

Explore the forested_train data on your own!

• What’s the distribution of the outcome, forested?
• What’s the distribution of numeric variables like precip_annual?
• How does the distribution of forested differ across the categorical variables?

08:00

Make a plot or summary and then share with neighbor

forested_train |>
  ggplot(aes(x = forested)) +
  geom_bar()

forested_train |>
  ggplot(aes(x = forested, fill = tree_no_tree)) +
  geom_bar()

forested_train |>
  ggplot(aes(x = precip_annual, fill = forested, group = forested)) +
  geom_histogram(position = "identity", alpha = .7)

forested_train |>
  ggplot(aes(x = precip_annual, fill = forested, group = forested)) +
  geom_histogram(position = "fill")

forested_train |>
  ggplot(aes(x = lon, y = lat, col = forested)) +
  geom_point()

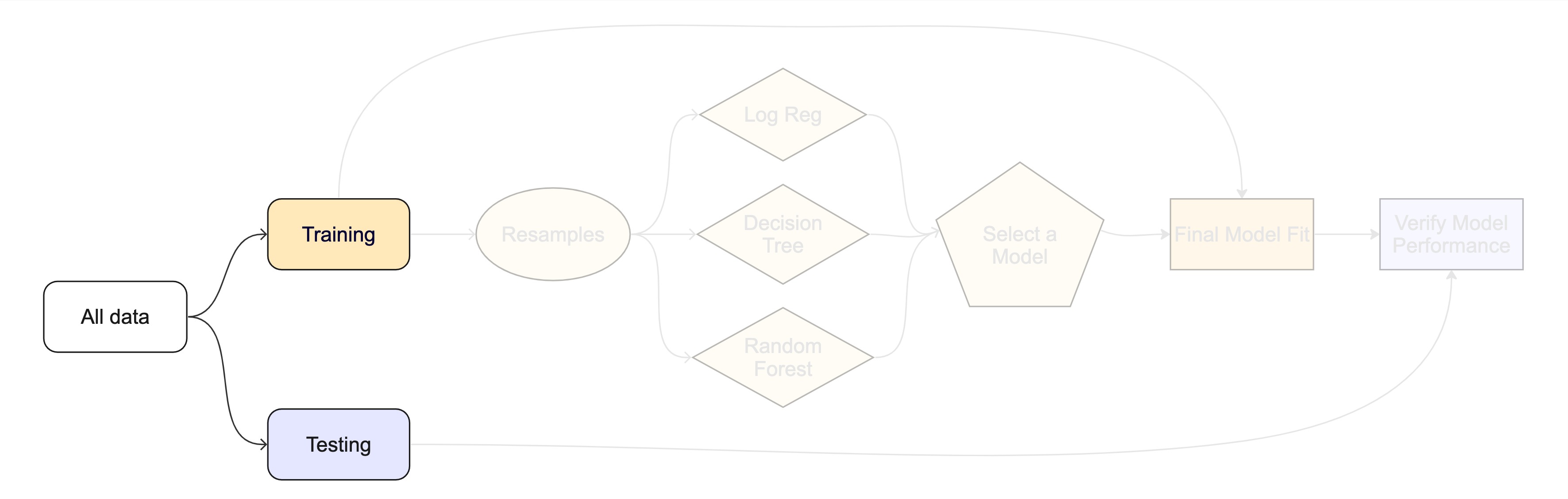

The whole game - status update
